KBM 50Q

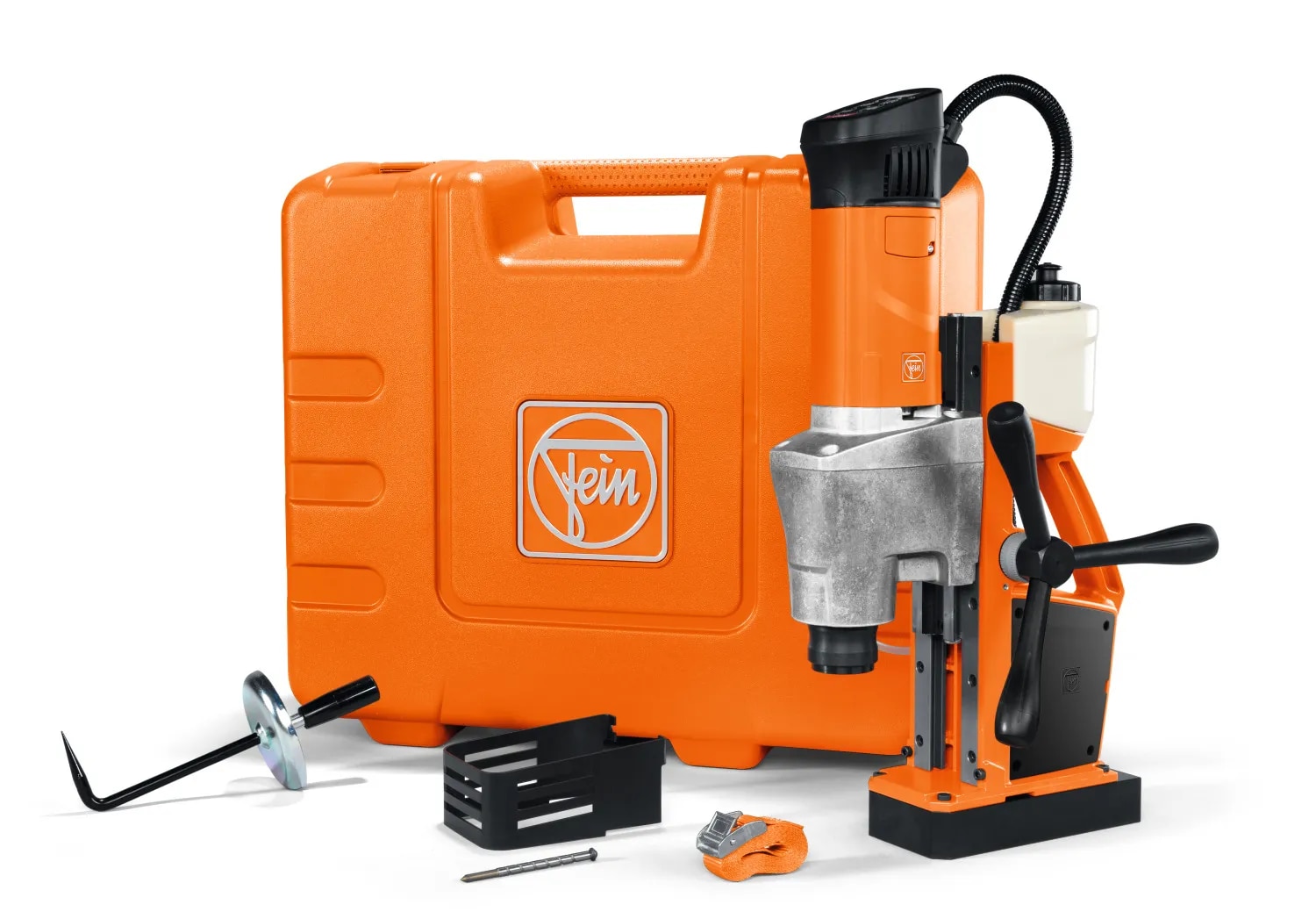

FEIN KBM 50 Q Magnetic Core Drill Machine – High Performance Metal Drilling Solution

The FEIN KBM 50 Q Magnetic Core Drill Machine is a powerful and versatile industrial-grade tool designed for precision metal drilling in workshops, fabrication units, and construction sites. Built with German engineering excellence, this magnetic drill delivers exceptional performance, durability, and safety for professional users.

Key Features of FEIN KBM 50 Q

The KBM 50 Q is equipped with a 1200W high-performance motor that ensures stable and efficient drilling even under heavy-duty conditions. Its two-speed gearbox (130–260 / 260–520 RPM) allows optimal speed control for different applications, including core drilling, tapping, countersinking, and reaming.

With a strong magnetic holding force of 12,500 N, the machine provides maximum stability during vertical, horizontal, and overhead drilling operations. The QuickIN tool-free cutter change system improves productivity by reducing downtime.

High Precision & Versatile Applications

This FEIN magnetic drill supports:

Core drilling up to 50 mm diameter

Twist drilling up to 16 mm

Tapping up to M16

Countersinking up to 31 mm

Reaming up to 16 mm

Its 145 mm stroke and 315 mm total travel range make it suitable for deep and accurate drilling tasks on steel structures, beams, and industrial metal components.

Durable Design for Industrial Use

The KBM 50 Q features a compact, lightweight yet rugged design (approx. 13–14 kg), making it easy to handle on-site. The integrated coolant system extends tool life, while the reversible motor and electronic speed control ensure smooth and precise operation.

Additional features include:

Clockwise & anti-clockwise rotation

Magnetic holding force indicator

Memory function for speed settings

Safety switch for operator protection

Swivel-mounted cable protection for durability

Applications

The FEIN KBM 50 Q is widely used in:

Steel fabrication industries

Construction and structural engineering

Shipbuilding and maintenance

Industrial maintenance workshops

Metal installation and assembly work

Why Choose FEIN KBM 50 Q?

If you are looking for a reliable, powerful, and precision-driven magnetic core drilling machine, the FEIN KBM 50 Q is an ideal choice. It offers unmatched performance, long service life, and maximum efficiency for professional metalworking applications.
